6.7L High Output Power Stroke V8 Specs: Horsepower, Torque, and Towing Breakdown

6.7L High Output Power Stroke V8 Specs: Horsepower, Torque, and Towing Breakdown

6.7L High Output Power Stroke V8 Specs: Horsepower, Torque, and Towing Breakdown

When heavy-duty performance demands absolute authority, Ford's flagship diesel engine answers with strong capability. The 6.7L High Output Power Stroke® V8 Turbo Diesel delivers a leading 500 horsepower at 2,600 RPM and a 1,200 lb-ft of torque at 1,600 RPM. Designed specifically for the demands of modern commercial operators, agricultural haulers, and recreational enthusiasts across Central Kansas, this powertrain offers strong performance for full-size heavy-duty trucks.
Engineered on a foundation of proven diesel durability, the High Output (HO) variant enhances the standard 6.7L architecture through aggressive thermal management, higher boost pressures, and precision tuning. Whether you are transporting livestock equipment across Dickinson County or pulling commercial payloads along Interstate 70, the HO Power Stroke delivers effortless off-the-line pulling power and unwavering highway passability.

Engine Feature

6.7L HO Power Stroke V8 Specification

Horsepower

500 hp @ 2,600 RPM

Torque

1,200 lb-ft @ 1,600 RPM

Engine Configuration

32-Valve Pushrod V8 Overhead Valve (OHV)

Block Material

Compacted Graphite Iron (CGI)

Cylinder Head Material

Cast Aluminum

Turbocharger

Water-Cooled Variable Geometry Turbocharger (VGT)

Fuel Delivery

High-Pressure Common-Rail (36,000 psi Piezo Injectors)

Transmission

TorqShift® 10-Speed Heavy-Duty Automatic

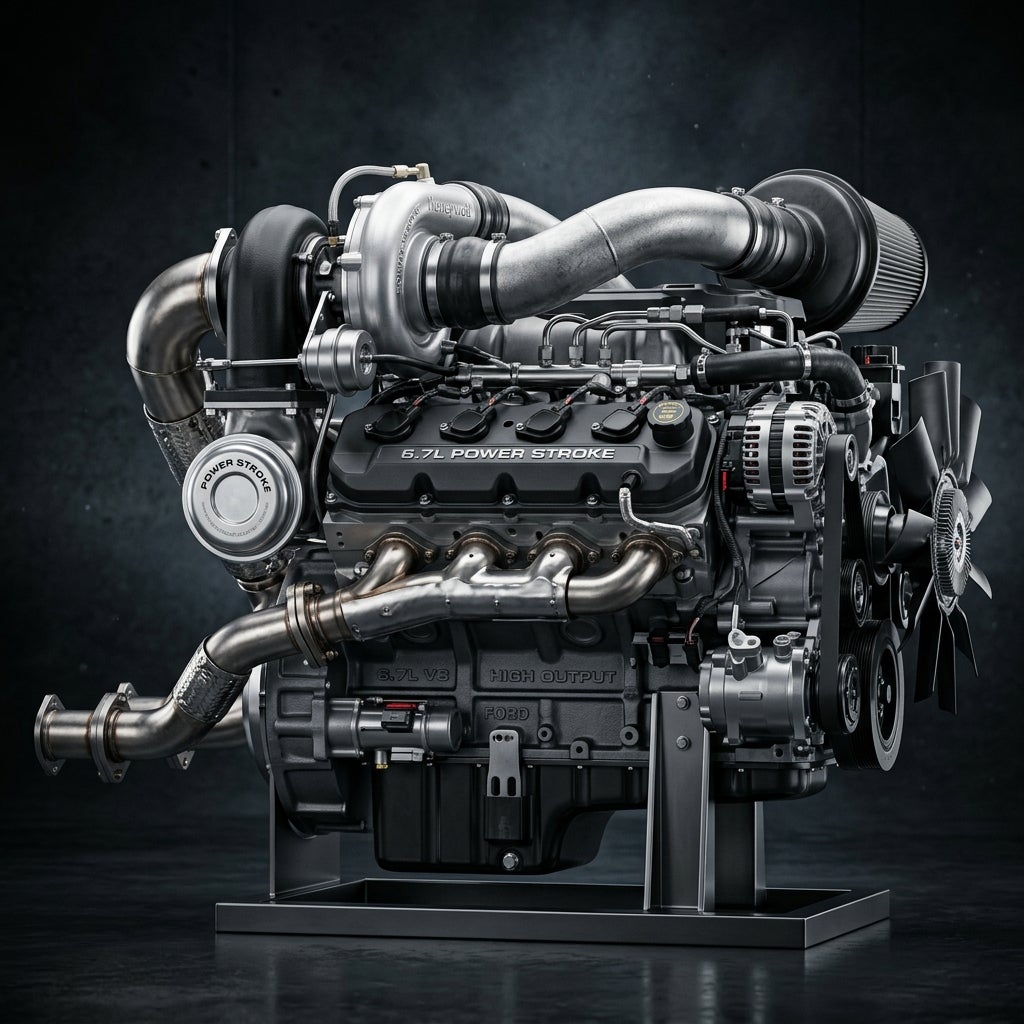

Detailed studio shot of a Ford 6.7L Power Stroke High Output V8 diesel engine on a metal display stand. (Representative image for illustration purposes only. Actual vehicle may vary based on trim and configuration.)

What Is the Difference Between the Standard 6.7L Power Stroke and the High Output Power Stroke?

While both versions of the 6.7L Power Stroke V8 share the same fundamental architecture, the High Output variant elevates capability to an entirely new echelon. The standard 6.7L Power Stroke generates an impressive 475 horsepower and 1,050 lb-ft of torque. Upgrading to the High Output powerplant adds 25 additional horsepower and 150 lb-ft of low-end torque.
To reliably manage this elevated output without compromising longevity, Ford engineers redesigned several key internal and peripheral components. Primary among these is a specialized water-cooled turbocharger housing that mitigates extreme exhaust gas temperatures (EGTs) during prolonged heavy towing climbs. Additionally, heavy-duty stainless steel exhaust manifolds replace traditional cast units to withstand continuous high-thermal cycling.
If you are comparing models for demanding farm operations or long-distance trailer hauling, review our full line by choosing to Research Ford F-250 trim options at Valor Ford.

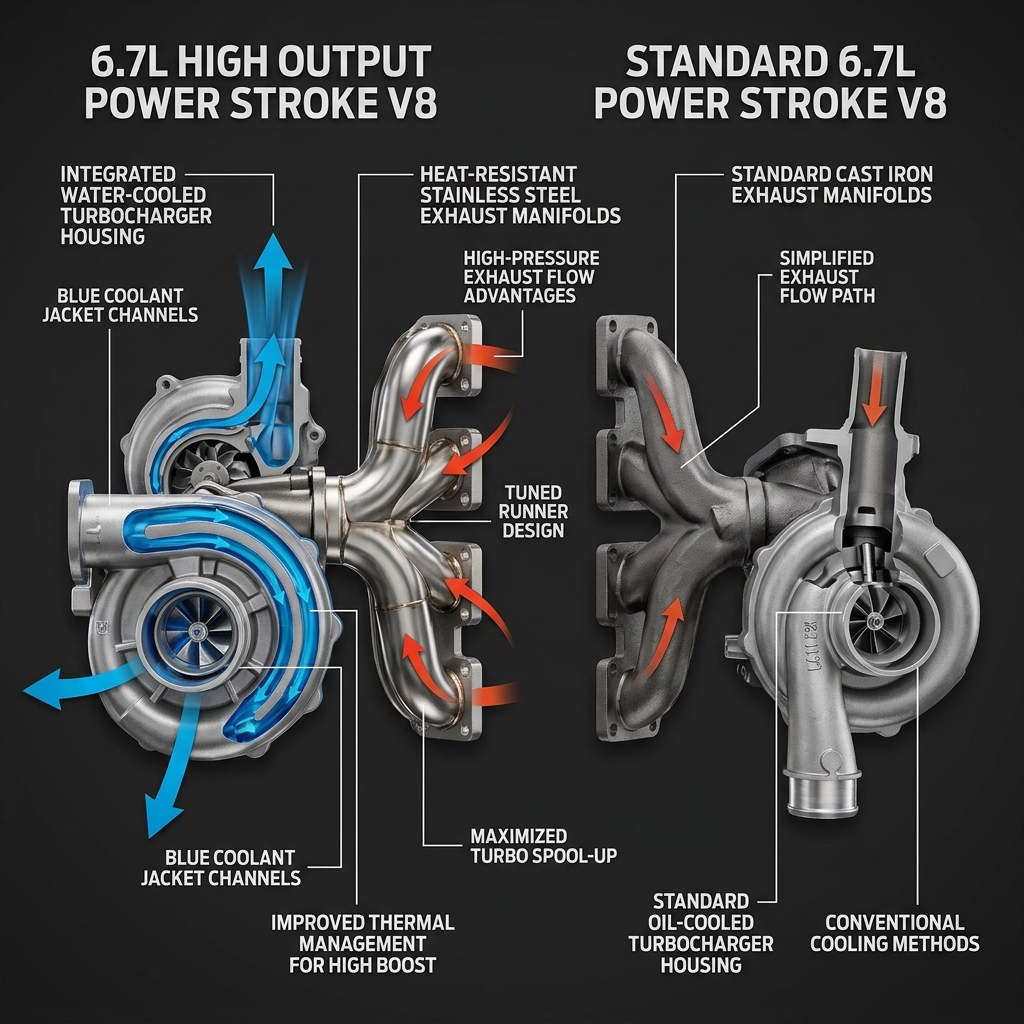

Comparison diagram of 6.7L High Output and Standard Power Stroke V8 turbocharger and exhaust manifold designs. (Representative image for illustration purposes only. Actual vehicle may vary based on trim and configuration.)
Engine control software calibration has also been recalibrated specifically for the HO variant, delivering dynamic throttle response and seamless integration with the TorqShift® 10-speed transmission. Cooling capacity is further fortified with enhanced engine oil coolers and high-flow radiator circulation to maintain optimum operating temperatures under severe payload conditions.

Is the High Output Diesel Engine Standard on Top Ford Super Duty Trims?

Standard Luxury Powertrain

The 6.7L HO Power Stroke comes standard on Ford's premium Super Duty configurations, including the top-tier Limited and Platinum trims across F-250, F-350, and F-450 models. Buyers seeking maximum factory luxury combined with pinnacle diesel performance receive this 1,200 lb-ft engine right out of the box without requiring extra option checks.

Factory Option Availability

For fleet operators, agricultural professionals, and custom builders, Ford offers the High Output diesel as an available factory option across XL, XLT, King Ranch®, and Lariat trims. This flexibility allows truck buyers near Junction City to configure a work-ready truck with maximum towing power without needing high-end interior luxury upgrades.

Tremor & Heavy-Duty Bundles

When configuring an off-road focused Tremor Off-Road Package on Lariat, King Ranch, or Platinum models, pairing it with the HO Power Stroke unlocks ultimate rock-crawling torque and deep-mud momentum. You can Browse Used Inventory or configure new Super Duty builds through our sales team at Valor Ford.

Which Heavy-Duty Diesel Truck Offers the Highest Overall Towing Rating?

When comparing heavy-duty diesel trucks from Ram, Chevrolet, and GMC, the Ford Super Duty equipped with the 6.7L High Output Power Stroke V8 offers strong towing capability in maximum towing capability. With proper gooseneck hitch setup and dual-rear-wheel (DRW) configuration on F-450 models, maximum towing capacity reaches an industry-defining 40,000 lbs.
Competitors like the Ram 3500 High Output Cummins (400 hp / 1,075 lb-ft) and GM Silverado/Sierra HD 6.6L Duramax (470 hp / 975 lb-ft) are rated differently in horsepower and peak torque output. Ford's 1,200 lb-ft threshold enables higher gross combination weight ratings (GCWR), providing significant margin and security when transporting extreme heavy machinery, construction equipment, or full-sized agricultural implements.

What Locally Relevant Towing Figures Are Advertised for the 2025 High Output Super Duty Near Junction City, Kansas?

For farmers, contractors, and military families around Junction City, Fort Riley, and throughout Dickinson and Geary counties, specs on paper translate into crucial everyday work capacity. A single-rear-wheel (SRW) F-250 or F-350 equipped with the 6.7L HO Power Stroke delivers conventional bumper towing ratings up to 22,000 lbs and gooseneck towing exceeding 23,000 lbs.
Stepping up to F-350 Dually or F-450 models unlocks max conventional towing up to 24,500 lbs and maximum payload capacities reaching over 8,000 lbs depending on cab layout. These numbers mean effortlessly hauling large cattle trailers across rolling Flint Hills pastures, moving loaded seed tenders, or transporting heavy track excavators to job sites near Fort Riley without exceeding rated limits.
Dark blue dually pickup truck towing a long silver gooseneck livestock trailer along a rural highway at sunset. (Representative image for illustration purposes only. Actual vehicle may vary based on trim and configuration.)

Engineering Highlights of the 6.7L HO Power Stroke Turbocharged V8

CGI Engine Block Construction

The engine foundation utilizes Compacted Graphite Iron (CGI), offering double the fatigue strength of traditional gray iron while drastically reducing engine weight. This high structural rigidity withstands intense cylinder pressures generated under full load.

36,000-PSI Piezo Injection

Ultra-high-pressure common-rail fuel injection precise to 36,000 psi fires up to eight injection events per combustion cycle. This precise fuel atomization optimizes power output, suppresses diesel engine noise, and ensures clean exhaust emissions.

TorqShift® 10-Speed Auto

Paired exclusively with Ford's heavy-duty TorqShift® 10-speed automatic transmission, featuring selectable drive modes (Normal, Tow/Haul, Eco, Slippery, and Deep Sand/Snow) for smooth gear progression under massive loads.

How Often Do Fuel Filters Need to Be Changed on the High Output Power Stroke?

Maintaining fuel purity is vital for protecting the 36,000-psi common-rail fuel system on your High Output Power Stroke. Ford factory guidelines mandate replacing both lower and upper fuel filters every 15,000 miles or at every third oil change interval, whichever comes first.
However, operating in rural Kansas agricultural environments with elevated ambient dust, extensive idling, or frequent bulk fuel fill-ups qualifies as severe duty usage. In these conditions, technicians at Valor Ford recommend inspecting and replacing fuel filters every 10,000 to 12,000 miles to prevent premature fuel injector wear.
Keep your high-performance diesel operating in peak condition. You can Schedule Ford Service Today or take advantage of our local valet by using Schedule Pickup and Delivery Service with our certified master diesel technicians.

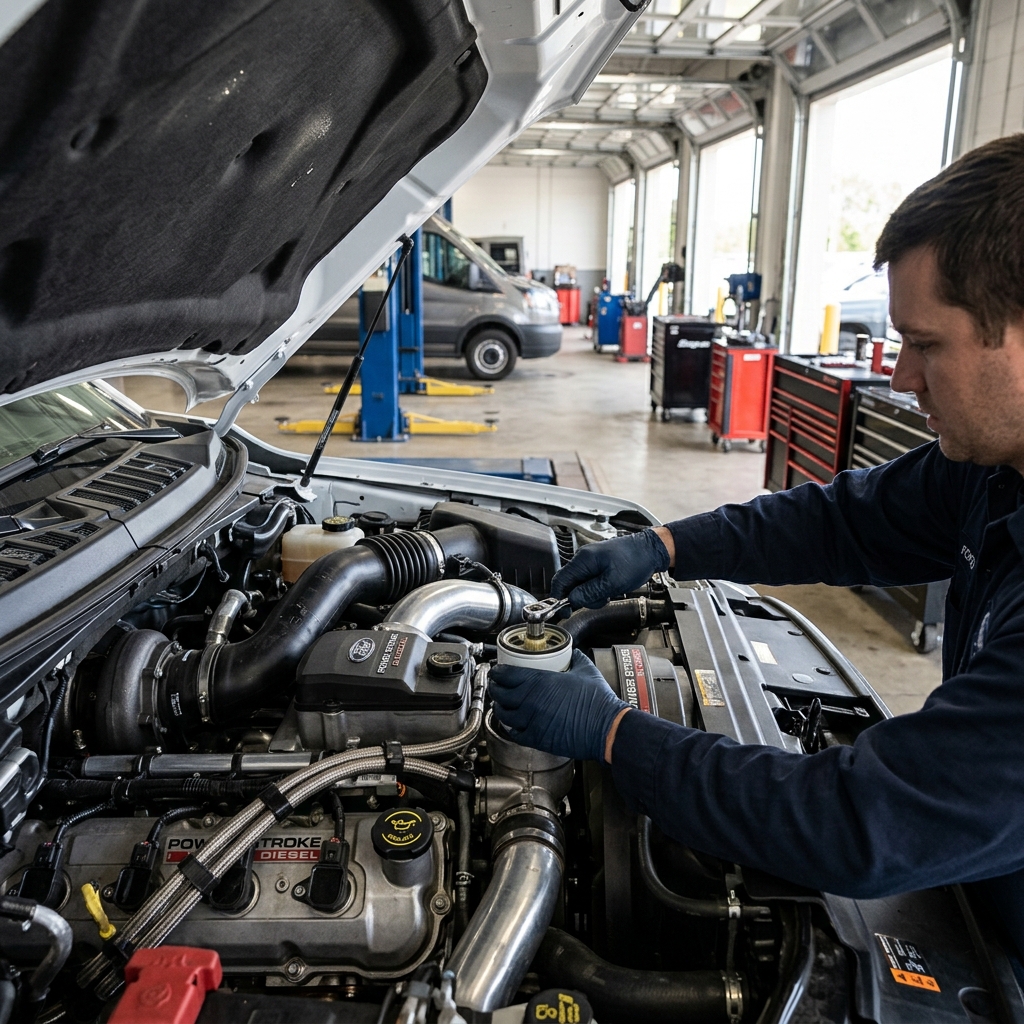

Auto mechanic wearing blue gloves uses a socket wrench to service a Ford Power Stroke diesel engine in a shop. (Representative image for illustration purposes only. Actual vehicle may vary based on trim and configuration.)

Real-World Fuel Economy and DEF Consumption for Heavy Hauling

Unloaded Highway Efficiency

While EPA fuel economy ratings are not required for heavy-duty class 2b/3 trucks, drivers routinely report 16-20 MPG highway unladen thanks to tall overdrive ratios in the 10-speed transmission.

Heavy Towing Range

When pulling 15,000+ lbs payloads along windy Kansas highway corridors, fuel economy averages 10-13 MPG. Combined with factory fuel tanks up to 48 gallons on long-bed crew cabs, highway range exceeds 500 miles between fill-ups.

DEF Consumption Rates

Diesel Exhaust Fluid (DEF) consumption tracks engine workload directly. Under light duty, expect 1 gallon of DEF per 800-1,000 miles. Under maximum towing continuous output, DEF usage increases to 1 gallon per 300-500 miles.

Commercial Duty vs. Recreational Towing in the Flint Hills Region

Choosing the right truck setup depends heavily on your primary trailering tasks. Commercial contractors and ranch operators pulling heavy steel goosenecks through hilly terrain often opt for 3.55 or 4.10 rear axle ratios (or 4.30 on DRW F-450s) to maximize initial launch momentum and uphill acceleration.
Conversely, recreational RV owners pulling modern luxury fifth-wheel campers across long interstate stretches benefit from the 3.31 axle ratio paired with single-rear-wheel F-250 or F-350 setups. This delivers exceptional cruising efficiency, whisper-quiet cabin acoustics, and effortless hill-climbing power through the Flint Hills.
Black Ford Super Duty dually truck towing a Solitude fifth-wheel camper down a winding road through grassy hills. (Representative image for illustration purposes only. Actual vehicle may vary based on trim and configuration.)

Valuing Your Trade-In and Financing Your High Output Super Duty Truck

Upgrading your work fleet or personal heavy-duty vehicle is a strategic financial investment. At Valor Ford, we simplify the purchasing journey with comprehensive financing tools tailored for both retail customers and commercial business entities in Central Kansas.
Business owners may take advantage of significant federal tax savings like Section 179 expense deductions for qualifying heavy-duty commercial vehicles over 6,000 lbs GVWR. Get started today by submitting a Contact Us for Financing Information application or request an accurate market-value assessment through our Trade In Evaluation process.

Super Duty Accessories and Upgrades for Maximum Working Efficiency

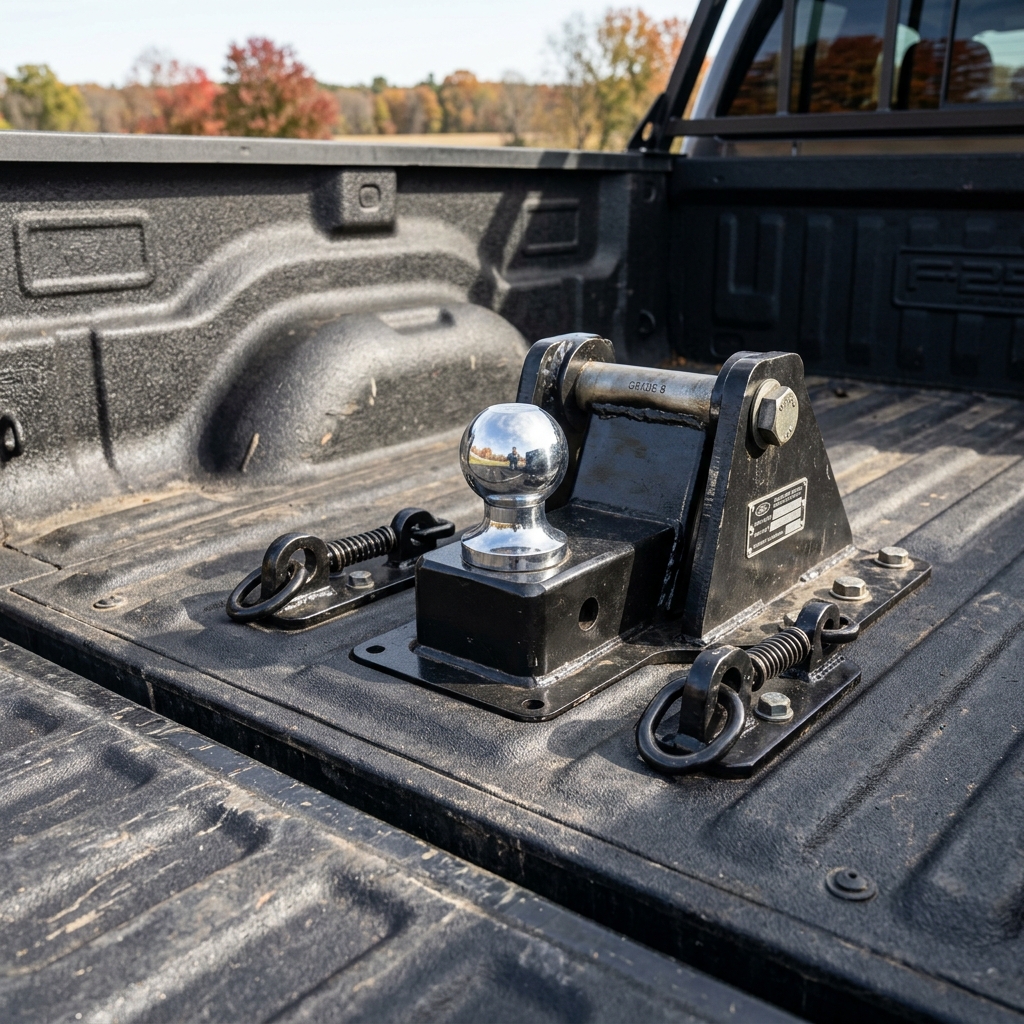

Heavy-duty gooseneck hitch adapter with chrome ball mounted in a black pickup truck bed. (Representative image for illustration purposes only. Actual vehicle may vary based on trim and configuration.)
Maximize the utility of your 6.7L HO Power Stroke with factory-engineered OEM accessories. Protect your investment and streamline your day-to-day operations with essential equipment options directly from Ford:
• 5th-Wheel / Gooseneck Prep Package: Fully integrated frame structure ready for quick hitch drop-in installation.
• Tough Bed® Spray-In Bedliner: Factory-applied durable barrier against heavy cargo abrasion.
• Auxiliary Fuel Tank Systems: Extend driving ranges for long cross-country hauls.
• All-Weather Floor Liners & Heavy-Duty Seat Covers: Protect interior cabin surfaces against Kansas dirt and mud.
You can easily Order Genuine Ford Parts directly through Valor Ford's OEM parts department.

Experience 1,200 LB-FT of Torque at Valor Ford in Junction City, KS

The 6.7L High Output Power Stroke V8 represents the pinnacle of modern diesel power, delivering an incredible combination of 500 horsepower, 1,200 lb-ft of torque, and towing strength up to 40,000 lbs. Whether you are driving heavy loads daily or taking long family road trips, there is no substitute for Ford Super Duty performance.
Visit our showroom at 1825 Goldenbelt Blvd, Junction City, KS 66441 to experience the High Output Power Stroke firsthand. Get Directions to Valor Ford or Call us at (785) 238-5114 to speak directly with our commercial diesel specialists today.
