2023 Ford Maverick vs. Hyundai Santa Cruz Bed Dimensions: Direct Comparison

2023 Ford Maverick vs. Hyundai Santa Cruz Bed Dimensions: Direct Comparison

2023 Ford Maverick vs. Hyundai Santa Cruz Bed Dimensions: Direct Comparison

When evaluating compact pickup trucks, the utility of the cargo bed is often the deciding factor between a vehicle that merely looks rugged and one that genuinely works hard. The 2023 Ford Maverick delivers a clear functional advantage over the Hyundai Santa Cruz, providing a longer bed floor measuring 54.4 inches compared to the Santa Cruz's 48.4 to 52.1 inches. This extra length, combined with a total cargo volume of 33 cubic feet (versus 27 cubic feet in the Santa Cruz), gives truck enthusiasts and weekend DIYers significantly more usable room for real-world cargo.

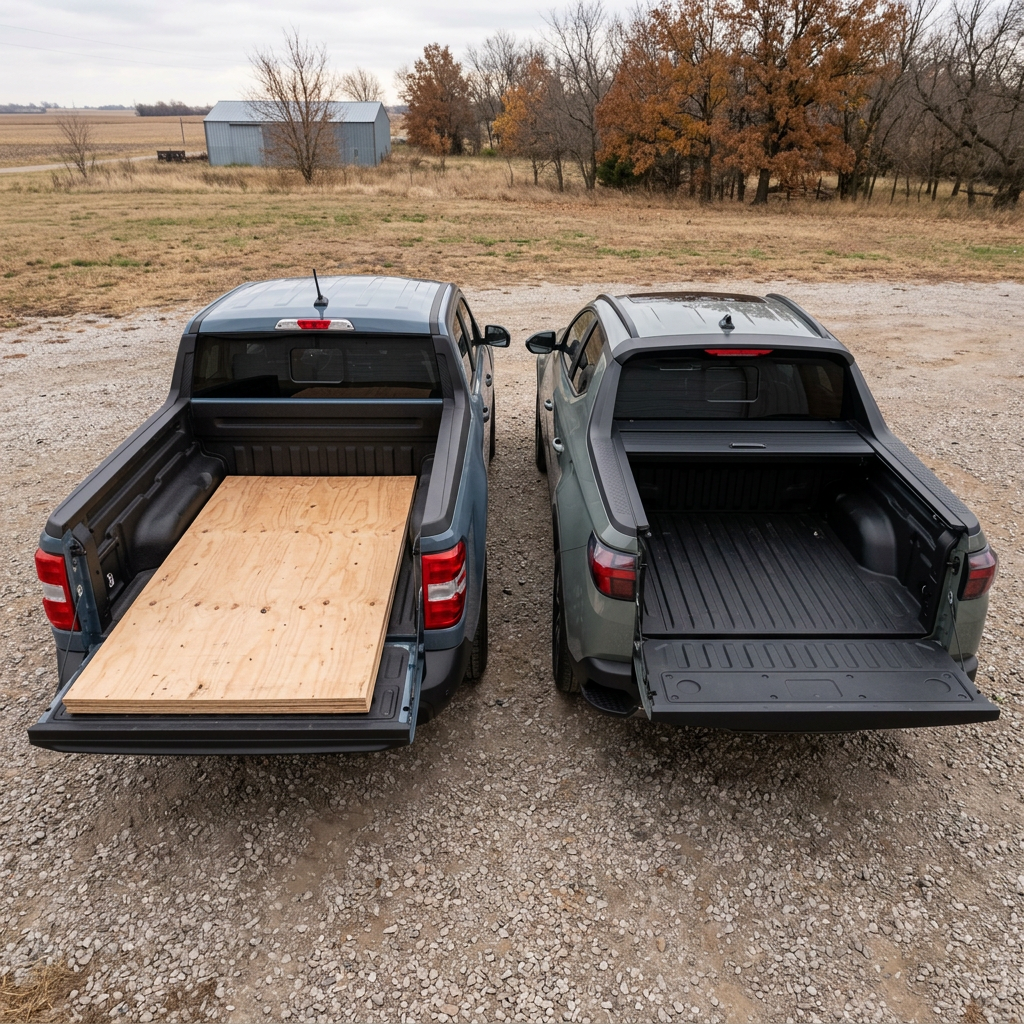

Rear view of a Ford Maverick carrying plywood sheets parked next to an empty Hyundai Santa Cruz on a gravel lot. (Representative image for illustration purposes only. Actual vehicle may vary based on trim and configuration.)
Beyond raw numbers, the structural design of the Maverick's FlexBed system provides an engineering edge. Ford designed the Maverick with square, vertical inner wheel wells and a ingenious multi-position tailgate. This combination allows drivers to flat-haul standard 4x8 sheet goods directly above the wheel housings—a capability the Santa Cruz struggles to match due to its curved interior side walls and shorter floor dimensions. Whether you are loading construction materials or packing outdoor equipment for a weekend trip, the Maverick's bed architecture maximizes every square inch.

What Are the 2023 Ford Maverick Bed's Interior Dimensions and Cargo Volume?

To appreciate why the 2023 Ford Maverick leads the compact truck segment in capability, it helps to examine the precise tape-measure specifications. Ford engineered the bed to balance external compact maneuverability with interior volume, giving owners a functional workspace that fits comfortably inside a standard home garage.

Bed Dimension Spec

2023 Ford Maverick

2023 Hyundai Santa Cruz

Bed Length at Floor

54.4 in

48.4 – 52.1 in

Width Between Wheelhouses

42.6 in

42.7 in

Maximum Bed Width

53.3 in

53.9 in

Bed Depth

20.3 in

19.2 in

Total Bed Cargo Volume

33.3 cu. ft.

27.0 cu. ft.

Standard Payload Capacity

1,500 lbs

1,411 lbs

Flat 4x8 Sheet Accommodation

Yes (Multi-Position Tailgate)

No (Requires Angled Support Racks)

Ford Maverick Bed Specifications: The Maverick features a floor length of 54.4 inches, extending to 79.5 inches with the tailgate open flat. Width between the wheelhouses is 42.6 inches, while the bed depth of 20.3 inches allows taller items to sit safely below the bed line. This shape provides 33 cu. ft. of usable space, offering full access for toolboxes, coolers, and hardware supplies.
Hyundai Santa Cruz Bed Specifications: The Santa Cruz bed tapers significantly toward the tailgate, resulting in a floor length ranging from 48.4 inches at the base to 52.1 inches higher up. Combined with an integrated under-bed trunk that intrudes into vertical wall design, total cargo volume is capped at 27 cu. ft., creating strict constraints for bulkier gear.

Can a 4x8 Sheet of Plywood Fit in the 2023 Ford Maverick Bed?

Yes, standard 4x8 feet sheets of plywood, drywall, or OSB fit flat in the 2023 Ford Maverick bed thanks to smart engineering solutions built into the FlexBed system. While the distance between the inner wheel wells is 42.6 inches (less than the 48 inches needed for a 4-foot wide sheet on the floor), Ford solved this by molding resting slots into the side walls. By inserting 2x4 boards horizontally across these slots and setting the multi-position tailgate to its half-open position (adjusting the support cables to the mid-latch pins), the tops of the wheel wells, 2x4s, and tailgate lip form a continuous, level plane at 4 feet wide. In contrast, the Hyundai Santa Cruz's shorter bed floor and curved wheel wells make flat transport of 4x8 sheets difficult without adding elevated aftermarket rack systems.

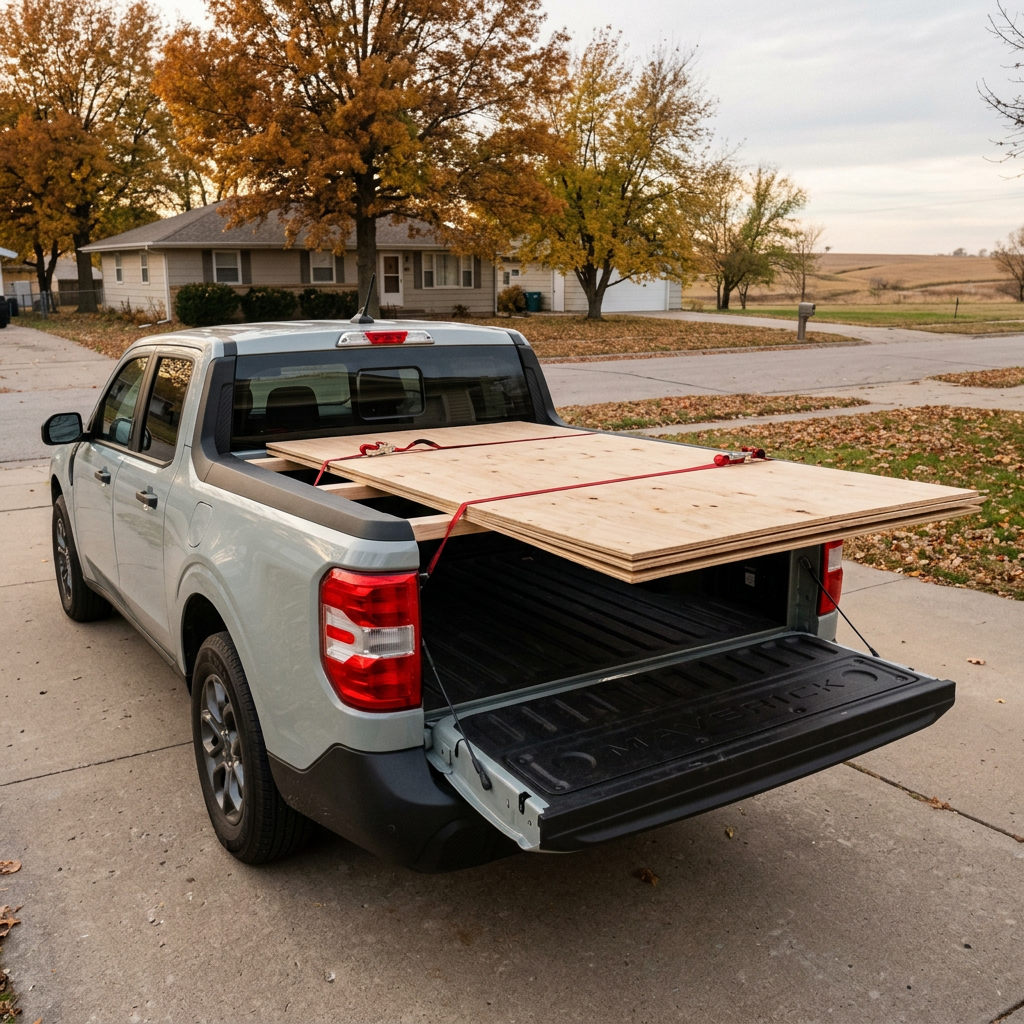

A light gray Ford Maverick truck with plywood sheets secured above the bed with red ratchet straps on a driveway. (Representative image for illustration purposes only. Actual vehicle may vary based on trim and configuration.)

What Is the Payload Capacity of the 2023 Ford Maverick Bed?

Payload capacity measures how much weight your truck can carry inside the cab and bed combined. The 2023 Ford Maverick boasts a standard 1,500-lb payload rating across both its standard 2.5L Hybrid powertrain and the available 2.0L EcoBoost gas engine.
1,500 lbs Standard Capacity Whether you choose the ultra-efficient Hybrid or the turbocharged EcoBoost, every Maverick model maintains a robust 1,500 lb payload limit. That equals roughly 37 bags of 40-lb topsoil or gravel per trip.
Bulk Material Hauling Thanks to rigid stamped-steel bed construction, the Maverick safely holds heavy cargo like wet mulch, bricks, or generator equipment without unneeded suspension sag.
Maverick vs. Santa Cruz While higher-trim Santa Cruz models list higher theoretical payload limits, base models start at 1,411 lbs, and practical loading space is limited by the smaller floor area.
Looking for pre-owned or new truck options? Browse Used Inventory or check available vehicles at Valor Ford.

Maverick FlexBed System vs. Santa Cruz Under-Bed Trunk: Daily Versatility

Ford's FlexBed DIY Adaptability: The Ford Maverick FlexBed is built around owner customization. It features pre-threaded vertical and horizontal pockets designed to slide in standard 2x4 or 2x6 lumber, letting you partition the bed into distinct storage zones. Want a dual-level cargo bed? Slide in a few boards. Need to secure cargo? The Maverick offers up to 10 tie-down D-rings and threaded holes for custom brackets. In addition, side pocket storage bins accommodate smaller items like jumper cables, tow straps, and tie-down ratchets without taking up floor area.

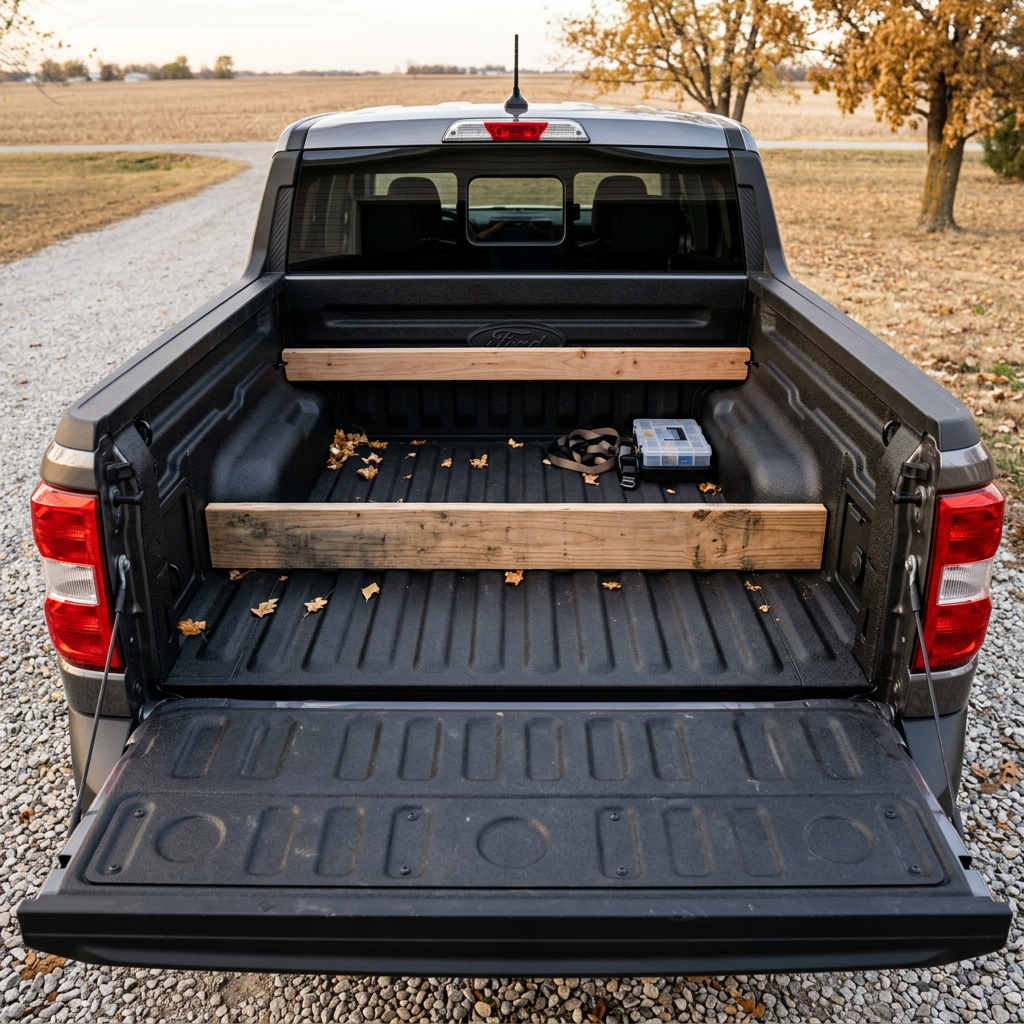

Rear view into an open pickup truck bed with wooden dividers, a storage box, and scattered autumn leaves. (Representative image for illustration purposes only. Actual vehicle may vary based on trim and configuration.)
Santa Cruz Under-Bed Trunk Trade-offs: The Santa Cruz includes a sealed under-bed trunk and factory retractable tonneau cover. While sealed storage is handy, accessing the under-bed trunk requires lifting up the rear portion of the bed floor. If you already have cargo loaded on top, accessing items in the bottom trunk becomes impractical.

How Do You Wire Accessories into the Maverick 12V Bed Power DIY Points?

Step-by-Step 12V e-DIY Power Installation: 1. Locate Access Covers: Behind removable panels near the rear tailgate pillar on both left and right sides, Ford supplies pre-wired 12-volt power pigtails. 2. Remove Dust Cover: Unclip the plastic access cover to expose the fused, factory-wired connector harness connected to the vehicle's fuse block. 3. Attach Harness Adapter: Use Ford e-DIY wiring harness adapters (or compatible plug-and-play terminals) to tap directly into the 20-amp fused power circuit. 4. Connect Accessories: Wire custom LED bed strip lighting, 12V air compressors for off-road tires, or tailgate party speakers without splicing factory wires. 5. Secure Weatherproofing: Reinstall the plastic trim cap to keep moisture and dust away from electrical points during Kansas thunderstorms.
Why Built-in e-DIY Connections Matter: Unlike traditional trucks or competing compact crossovers like the Hyundai Santa Cruz—which require tapping into taillight harnesses or running expensive wiring leads from the engine compartment—the Maverick's e-DIY 12V system is built from the factory for easy modification. Whether powering camping lights at Milford Lake or running portable air pumps at a job site, Ford makes customization simple and safe without voiding vehicle electrical warranties.

Is a Spray-In Bed Liner Better Than a Drop-In Bed Liner for the Ford Maverick?

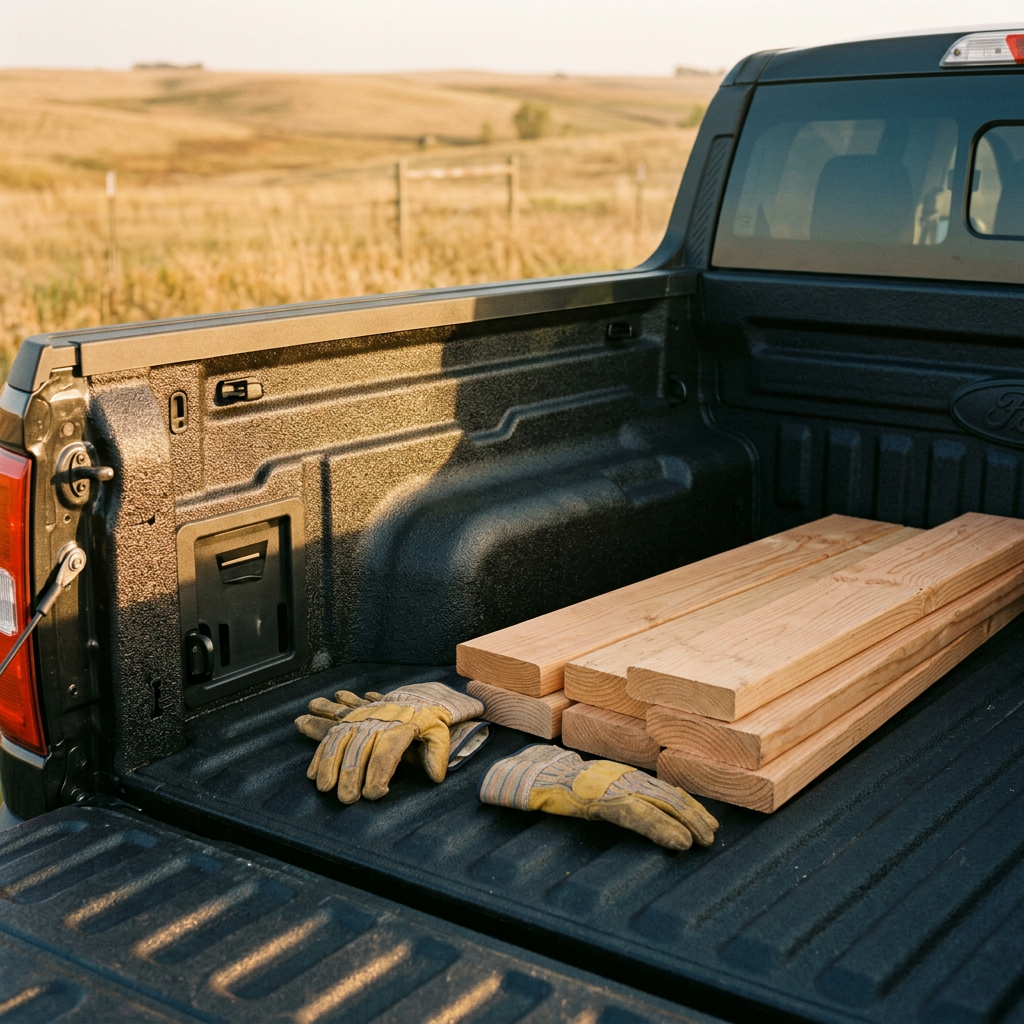

Wooden lumber planks and work gloves sitting in the bed of a pickup truck in a rural field at sunset. (Representative image for illustration purposes only. Actual vehicle may vary based on trim and configuration.)
Spray-In Bed Liner (Tough Bed) Factory spray-in liners bond directly to high-strength steel bed panels. They form a seamless, textured polyurethane seal that resists scratches, chemicals, and water intrusion. Ideal for severe work environments where moisture might otherwise trap rust behind panels.
Drop-In Plastic Liners Drop-in high-density polyethylene liners absorb heavy impacts from dropped tools or stone loads well. However, grit can collect underneath over time. The Santa Cruz uses a composite bed structure, which avoids rust but lacks the rugged steel strength of the Maverick.
Kansas Protection & Parts Given Flint Hills mud, dust, and winter road salt, protecting your investment is vital. Need OEM bed mats, spray liner care, or tie-down hardware? You can Order Genuine Ford Parts directly through Valor Ford.

Hauling Outdoor Gear Around Junction City and Fort Riley in a Compact Bed

For Fort Riley service members and active Junction City families, compact truck versatility is tested every weekend. Whether loading kayaks for a paddle on Milford Lake, packing wall tents and coolers for camping trips, or stowing military gear bags and Pelican equipment cases, bed dimensions dictate how easily your trip starts. The 2023 Ford Maverick's 54.4-inch bed floor handles long range cases and full-size tactical lockers flat on the floor. In contrast, the Santa Cruz's 48.4-inch floor often forces gear to be loaded at awkward angles, consuming precious vertical clearance under tonneau covers.
Thanks to low bed side walls and an easy-access liftgate height of 30.1 inches, loading heavy hunting gear or mounting bike tailgates pads on the Maverick requires far less strain. The Maverick strikes an ideal balance: easy parking in downtown Junction City or Fort Riley housing, combined with true open-bed pickup utility.

Rural Utility and Farm Task Hauling Across Dickinson County

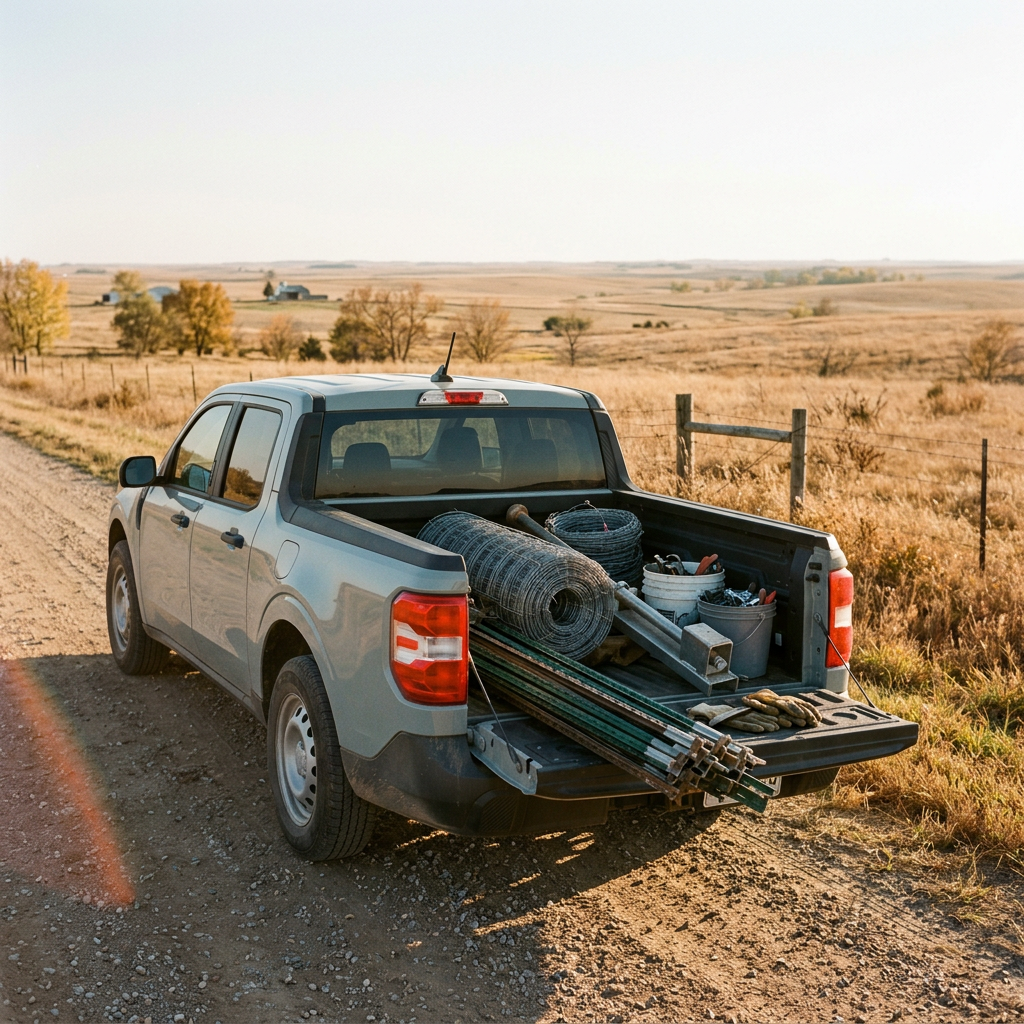

Light gray pickup truck parked on a dirt road, bed loaded with rolls of wire fencing, T-posts, and work tools. (Representative image for illustration purposes only. Actual vehicle may vary based on trim and configuration.)
Fencing & Post Transport Across farms near Abilene and rural Dickinson County, fence repairs require carrying t-posts, rolls of woven wire, and post drivers. The Maverick's 54.4-inch bed floor accommodates standard fence posts flat with tailgate closed.
Feed Bags & Agricultural Supplies Stacking 50-lb livestock feed sacks or seed bags is straightforward thanks to squarer wheel wells and a 1,500 lb capacity. You can haul full loads without squishing sacks into curved corners.
Generators & Power Tools With available 110V/400W bed power outlets and 12V e-DIY access points, the Maverick powers tools directly in the field—acting as a mobile workbench on the farm.

Essential Bed Upgrades: Tonneau Covers, Bed Extenders, and Racks

Bed Extenders & Tonneau Covers: To stretch functional bed capacity even further, Genuine Ford Bed Extenders swing outward over an open tailgate, adding **1.5 feet of secure enclosed space** (expanding bed length to over 6 feet). When flipped inward, the extender acts as a divider to keep groceries from sliding around. Adding a soft roll-up or hard trifold tonneau cover protects cargo from rain and dust while enhancing aerodynamic highway efficiency.
Elevated Kayak & Ladder Racks: For outdoor adventurers carrying long kayaks, canoes, or contractor ladders, Ford offers integrated bed-rail elevated rack systems. These elevate gear above the bed roofline while preserving full floor cargo space below. Compare this with full-size truck alternatives like the Research Ford F-150 or Research Ford F-250 if your work demands maximum towing capacity.

Value, Efficiency, and Total Cost of Ownership Comparison

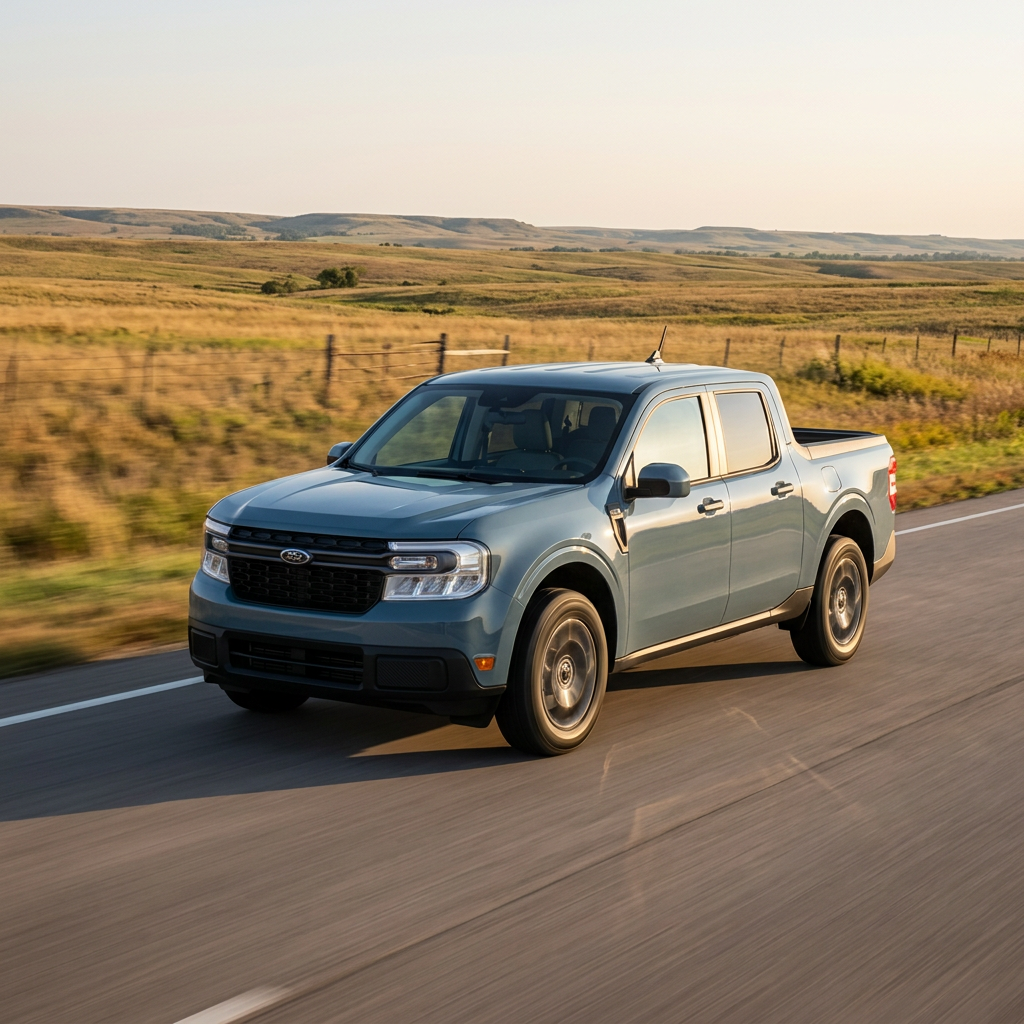

Light blue Ford Maverick pickup truck driving on a two-lane highway through rolling countryside hills. (Representative image for illustration purposes only. Actual vehicle may vary based on trim and configuration.)
Fuel Economy Superiority The 2023 Maverick Hybrid delivers up to an EPA-estimated **40 MPG city**, drastically outperforming the Santa Cruz's 22 MPG city rating. Over 5 years, this saves thousands in fuel costs for daily commutes around Geary County.
Starting MSRP & Value Retention Contact Valor Ford for current MSRP and availability details. The Maverick delivers strong entry-level value and retains resale equity in the midwest truck market.
Trade-In Equity at Valor Ford Thinking of upgrading your current vehicle? Our team provides quick online appraisals. Get started today with a Trade In Evaluation to see what your vehicle is worth.

Test Fit Your Gear in a 2023 Ford Maverick at Valor Ford in Junction City

Reading specifications is a great starting point, but nothing beats seeing the 2023 Ford Maverick's bed versatility in person. At Valor Ford, we invite local drivers, tradespeople, and Fort Riley personnel to bring your real-world gear—toolboxes, camping equipment, or measuring tapes—and test fit it directly in our Maverick inventory! Visit our showroom at 1825 Goldenbelt Blvd, Junction City, KS 66441 to experience the FlexBed system firsthand. Get Directions to Valor Ford or Call us at (785) 238-5114 to schedule a test drive today.
